motceiling

The importance of being called Motceiling

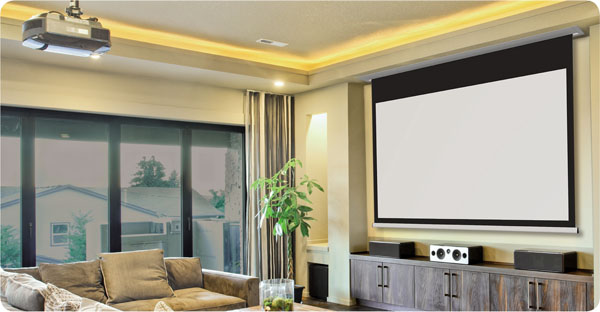

For situations that require a discrete presence, we recommend a nearly invisible electric screen, in which its special built-in system allows for the placing of the box inside the false ceiling, making the structure invisible, and avoiding that the presence of brackets or holes disturbs the perfect harmonization of the screen with its surrounding environment.

Standard equipment includes spacer bars, which enable to place the screen at a variable distance – between 15 cm and 100 cm from the ceiling – and an end cap for each side of the box, which allow the mounting system to be concealed.

In its Deluxe version, the Motceiling electric screen is enhanced by an elegant black perimeter edging and a slat bar with matt black finishing.

Like the other motorised screens, it can be made with both front projection and rear projection fabrics.

profile
scheme

MOTCEILING

Base Backdrop Envelope Weight (kg) Packing
B  H  D  F  C  A
160 160 x 120 79" 124 164 176 21 190 x 22 x 22
180 180 x 135 89" 139 184 196 24 210 x 22 x 22
200 200 x 150 98" 154 204 216 26 230 x 22 x 22
225 225 x 169 111" 173 229 241 29 255 x 22 x 22
250 250 x 188 123" 192 254 266 32 280 x 22 x 22
300 300 x 225 148" 229 304 316 36 330 x 22 x 22
335 335 x 251 165" 255 339 351 38 365 x 22 x 22
350 350 x 263 172" 267 354 366 40 380 x 22 x 22
400 400 x 300 197" 304 404 416 45 430 x 22 x 22
Base Backdrop Envelope Weight (kg) Packing
B  H  D  F  C  A
160 160 x 90 72" 94 164 176 21 190 x 22 x 22
180 180 x 101 81" 105 184 196 24 210 x 22 x 22
200 200 x 113 90" 117 204 216 26 230 x 22 x 22
225 225 x 127 102" 131 229 241 29 255 x 22 x 22
250 250 x 141 113" 145 254 266 32 280 x 22 x 22
300 300 x 169 136" 173 304 316 36 330 x 22 x 22
335 335 x 188 151" 192 339 351 38 365 x 22 x 22
350 350 x 197 158" 201 354 366 40 380 x 22 x 22
400 400 x 225 181" 229 404 416 45 430 x 22 x 22
Base Backdrop Envelope Weight (kg) Packing
B  H  D  F  C  A
160 160 x 100 74" 104 164 176 21 190 x 22 x 22
180 180 x 113 84" 117 184 196 24 210 x 22 x 22
200 200 x 125 93" 129 204 216 26 230 x 22 x 22
225 225 x 141 104" 145 229 241 29 255 x 22 x 22
250 250 x 156 116" 160 254 266 32 280 x 22 x 22
300 300 x 188 139" 192 304 316 36 330 x 22 x 22
335 335 x 209 156" 213 339 351 38 365 x 22 x 22
350 350 x 219 162" 223 354 366 40 380 x 22 x 22
400 400 x 250 186" 254 404 416 45 430 x 22 x 22
Base Backdrop Envelope Weight (kg) Packing
B  H  D  F  C  A
160 160 x 160 89" 164 164 176 21 190 x 22 x 22
180 180 x 180 100" 184 184 196 24 210 x 22 x 22
200 200 x 200 111" 204 204 216 26 230 x 22 x 22
225 225 x 225 125" 229 229 241 29 255 x 22 x 22
250 250 x 250 139" 254 254 266 32 280 x 22 x 22
300 300 x 300 167" 304 304 316 36 330 x 22 x 22
335 335 x 335 187" 339 339 351 38 365 x 22 x 22
350 350 x 350 195" 354 354 366 40 380 x 22 x 22
400 400 x 400 223" 404 404 416 45 430 x 22 x 22
scheme

MOTCEILING Deluxe

Base 20 cm Drop Backdrop Envelope Weight (kg) Packing
E  B  H  D  F  C  A
160 150 x 113 74" 142 164 176 21 190 x 22 x 22
180 170 x 128 84" 157 184 196 24 210 x 22 x 22
200 190 x 143 94" 172 204 216 26 230 x 22 x 22
225 215 x 161 106" 190 229 241 29 255 x 22 x 22
250 240 x 180 118" 209 254 266 32 280 x 22 x 22
300 290 x 218 143" 247 304 316 36 330 x 22 x 22
335 325 x 244 160" 273 339 351 38 365 x 22 x 22
350 340 x 255 167" 284 354 366 40 380 x 22 x 22
400 390 x 293 192" 322 404 416 45 430 x 22 x 22
Base 50 cm Drop Backdrop Envelope Weight (kg) Packing
E  B  H  D  F  C  A
160 150 x 84 68" 143 164 176 21 190 x 22 x 22
180 170 x 96 77" 155 184 196 24 210 x 22 x 22
200 190 x 107 86" 166 204 216 26 230 x 22 x 22
225 215 x 121 97" 180 229 241 29 255 x 22 x 22
250 240 x 135 108" 194 254 266 32 280 x 22 x 22
300 290 x 163 131" 222 304 316 36 330 x 22 x 22
335 325 x 183 147" 242 339 351 38 365 x 22 x 22
350 340 x 191 154" 250 354 366 40 380 x 22 x 22
400 390 x 219 176" 278 404 416 45 430 x 22 x 22
Base 35 cm Drop Backdrop Envelope Weight (kg) Packing
E  B  H  D  F  C  A
160 150 x 94 70" 138 164 176 21 190 x 22 x 22
180 170 x 106 79" 150 184 196 24 210 x 22 x 22
200 190 x 119 88" 163 204 216 26 230 x 22 x 22
225 215 x 134 100" 178 229 241 29 255 x 22 x 22
250 240 x 150 111" 194 254 266 32 280 x 22 x 22
300 290 x 181 135" 225 304 316 36 330 x 22 x 22
335 325 x 203 151" 247 339 351 38 365 x 22 x 22
350 340 x 213 158" 257 354 366 40 380 x 22 x 22
400 390 x 244 181" 288 404 416 45 430 x 22 x 22
Base 50 cm Drop Backdrop Envelope Weight (kg) Packing
E  B  H  D  F  C  A
160 150 x 64 64" 123 164 176 21 190 x 22 x 22
180 170 x 72 73" 131 184 196 24 210 x 22 x 22
200 190 x 81 81" 140 204 216 26 230 x 22 x 22
225 215 x 91 92" 150 229 241 29 255 x 22 x 22
250 240 x 102 103" 161 254 266 32 280 x 22 x 22
300 290 x 123 124" 182 304 316 36 330 x 22 x 22
335 325 x 138 139" 197 339 351 38 365 x 22 x 22
350 340 x 145 145" 204 354 366 40 380 x 22 x 22
400 390 x 166 167" 225 404 416 45 430 x 22 x 22

Mounting Brackets

brackets

(False ceiling)

Ceiling installation
